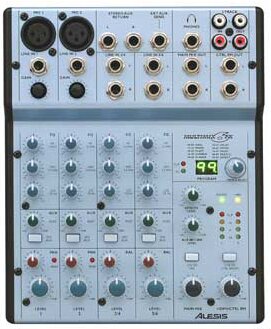

MULTIMIX 6FX SPECIFICATIONS
CONTROL
Front-panel channels (top down): 2 mic/line channels with gain. All channels with 3-band EQ (high shelving at 12kHz, mid bandpass/reject at 2.5kHz, low shelving at 80Hz), aux send (post-fader, onboard or external effects), pan or balance, level. Front-panel other: Effect section with selector plus clip and signal LEDs. Effects level, aux return level. Main out level with 2-track to mix switch. Headphone/control room out level with 2-track to control room switch. Stereo 4-segment LED meters.
CONNECTIONS
All 1/4" TRS except as noted: Mic in x 2 (XLR), mono line in x 2, stereo line in x 2, aux send, stereo aux return, stereo main out, stereo control room out, headphone out. 2-track stereo in and out (RCA).
AUDIO SPECS
Frequency response: 20Hz–22kHz ±0.5dB. Dynamic range: >100dB. Distortion: <0.01% THD+N (mic/line to L/R master out). Maximum gain: 60dB (mic in to L/R master out). Maximum output: +14dBu main L/R, +5dBV 2-track outs.
POWER
18V AC external transformer
DIMENSIONS
(H x W x D): 3" x 7.25" x 9" (76mm x 184mm x 229mm)
WEIGHT
3lbs (1.4kg)
